Power supply: Machine: 24V d.c. - 5,5 Amp. - 130W - Power pack: 90/264V a.c. - 50/60Hz - 220W - MEANWELL GS220A24-R7B
Cutter motor (flat cuts): 24V d.c.
Cutter motor (dimple/laser cuts): 24V d.c.
Prismatic cutter (flat cuts): 01F, in HSS super rapid steel, TiCN coated
Cutter (dimple cuts): 01D, in HSS super rapid steel
Cutter (laser cuts): 01LW, in carbide, AlCrN coated
Tool speed: Prismatic cutter: 1585 rpm - Cutter (dimple/laser cuts): 12100 rpm
Movements: on 3 axes (with special bushes) driven by step motors (on recti?ed roller guides)

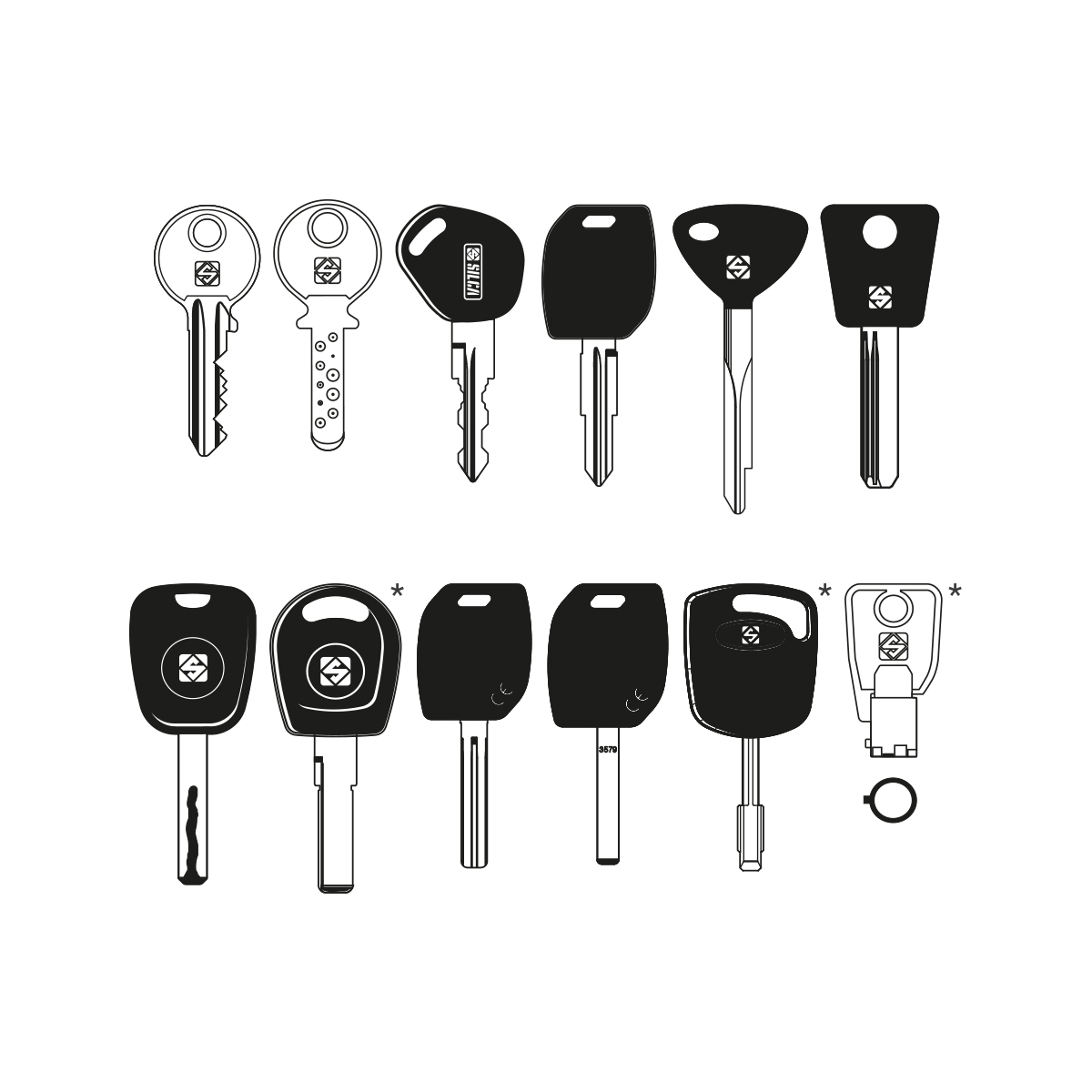

Clamp (flat cuts): 01V, removable, with 4 universal sides for holding ?at, vehicle and cruciform keys
Clamp (dimple/laser cuts): 01R, removable and provided with interchangeable jaws (01J and 02J)
Runs: X axis: 30 mm, Y axis: 50 mm, Z axis: 27 mm
Dimensions: width: 318 mm, depth: 413 mm, height with tablet and stand: 522 mm (without tablet and stand: 340 mm)
Weight: 20 Kg
