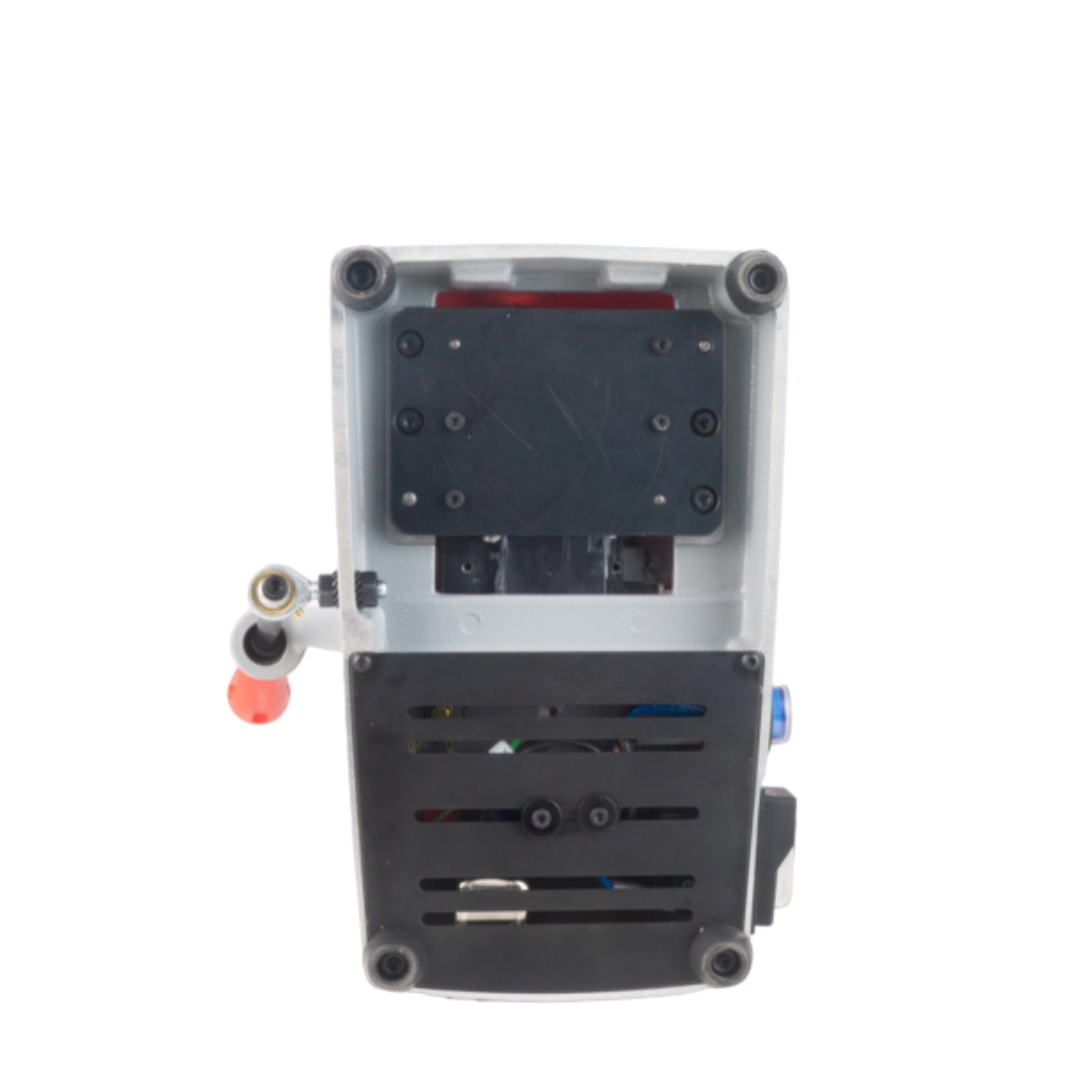

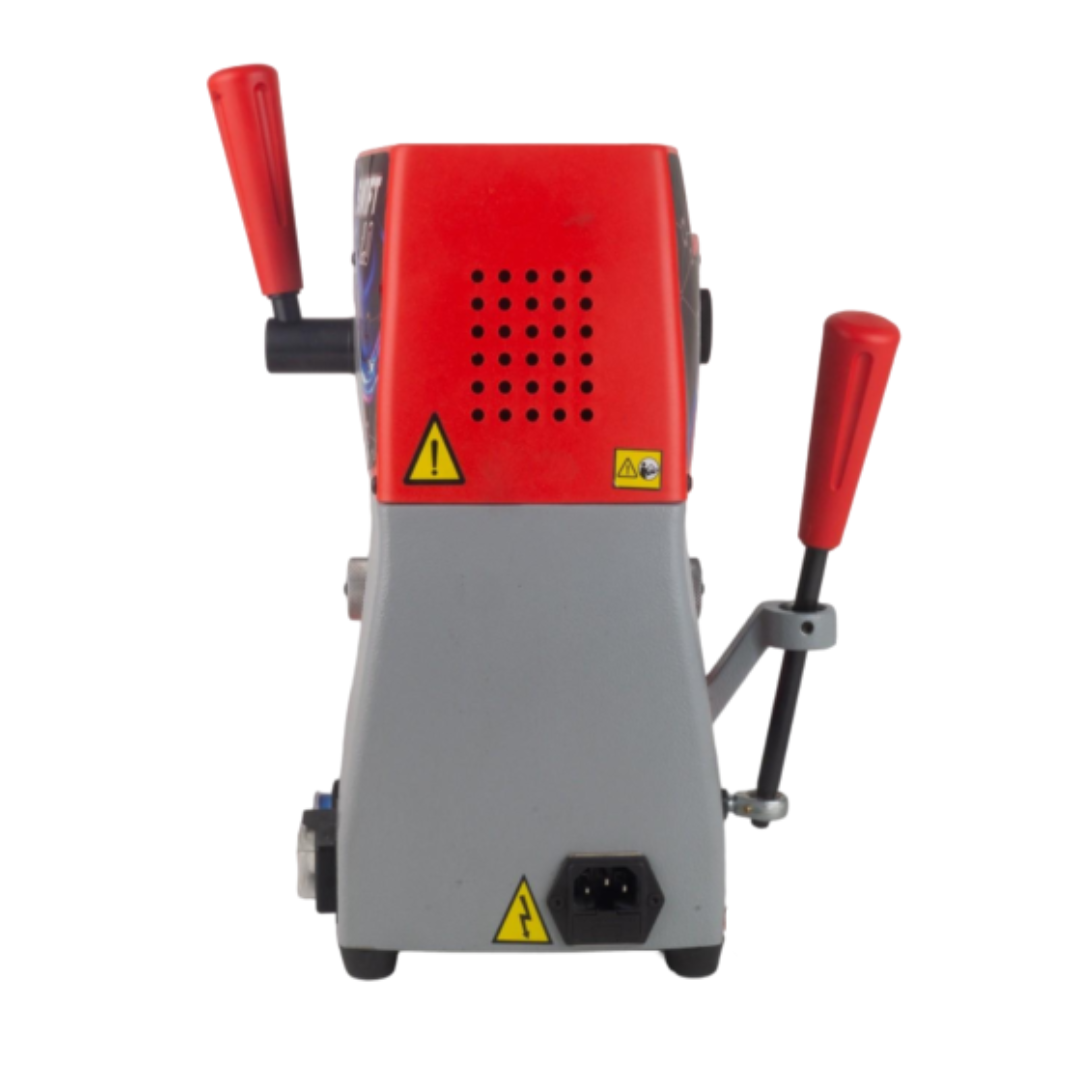

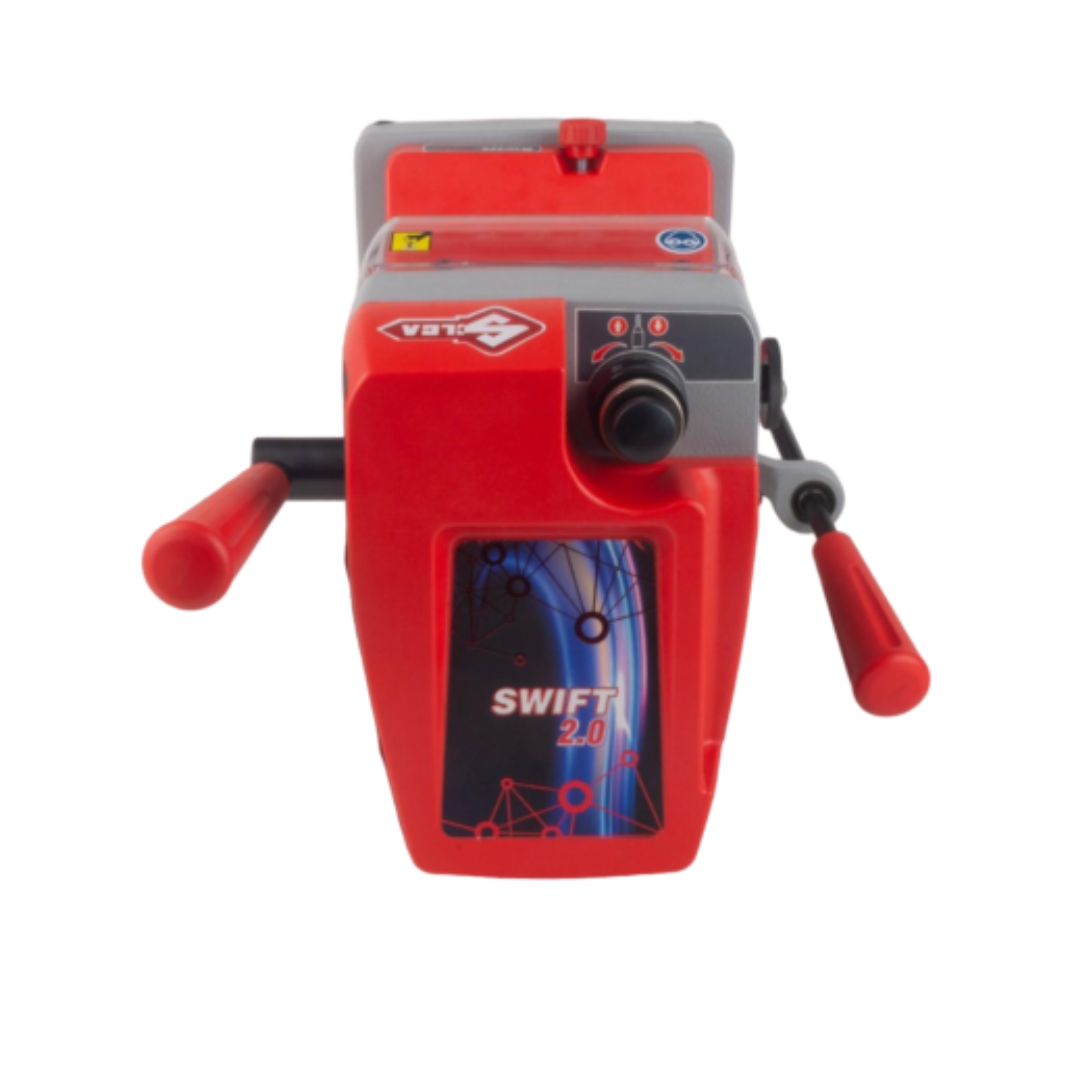

SWIFT 2.0

The mechanical key cutting machine for dimple, laser and tubular keys.Swift Plus is the mechanical key cutting machine for dimple, laser and tubular keys. Easy and comfortable to use and made with resistant and durable materials, Swift Plus is reliable over time ensuring quality cutting results.


Downloads
Taggy Keys
Taggy Sequence 1
Taggy Sequence 2
Taggy Sequence 3
Taggy Sequence 4
Taggy Keys
Taggy Sequence 1
Taggy Sequence 2
Taggy Sequence 3
Taggy Sequence 4

Product details

Lightweight, resistant and durable: Perfect illumination of the work station: Practical accessories area: Safe for the operator: the mains switch of the machine is thermal-magnetic, a security device that prevents that the cutter automatically turns on after an abrupt interruption and reactivation of the electric power.

Movements:on three axes via rods and bushings

Cutting tools:HSS (high speed steel) with TiN Coating

Tool speed:50Hz: 8000 rpm (+/- 10%), 60Hz: 8000 rpm (+/- 10%)

Carriage runs:X axis: 24 mm, Y axis: 50 mm, Z vertical axis: 22 mm

Dimensions: Width: 260 mm, Depth: 285 mm, Height: 315 mm

Weight: 12 kg
